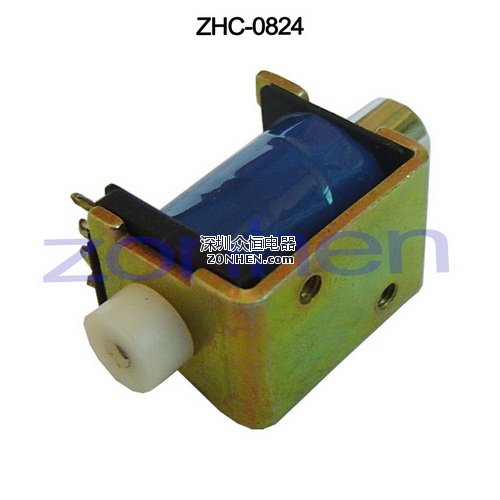

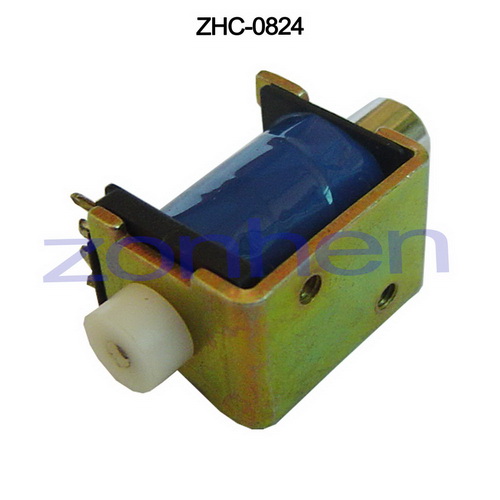

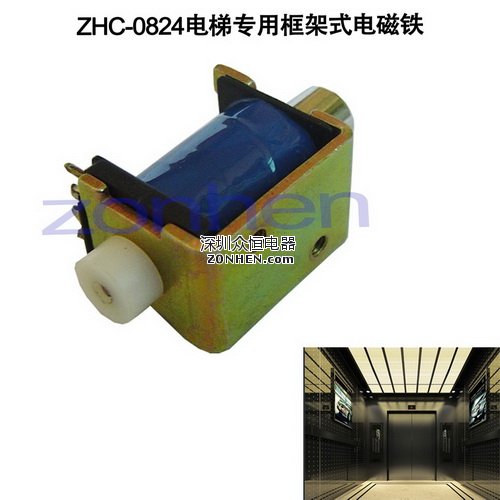

ZHC-0824 C type open frame solenoid used for elevator door lock

Exteranl dimension：24*20*16 （mm）

Voltage：3-48VDC 24-220VAC

Stroke： 0-5mm, Force： From 10-500g according to differnet stroke and power.

Working mode: Push and Pull

Insulation class： Class B，F.....

Application:Elevator lock
