  • Model:
    ZH-24BYJ48-05D20
  • Dimensions:
    Dia.24*19mm
  • View:
    763
  • Date:
    2020-11-10
  • PDF:

Product Details

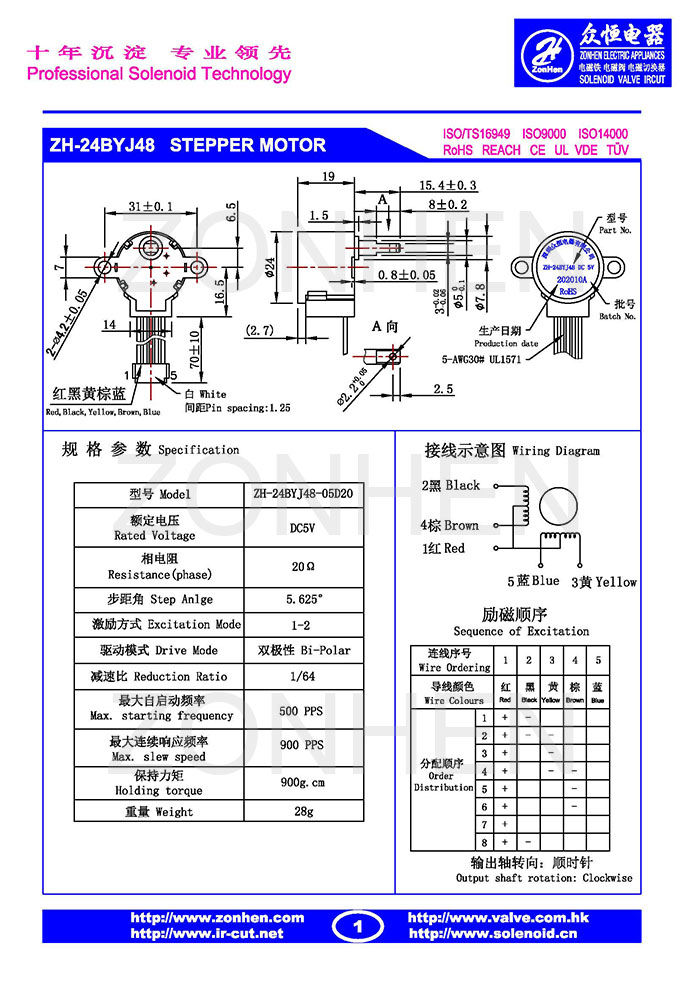

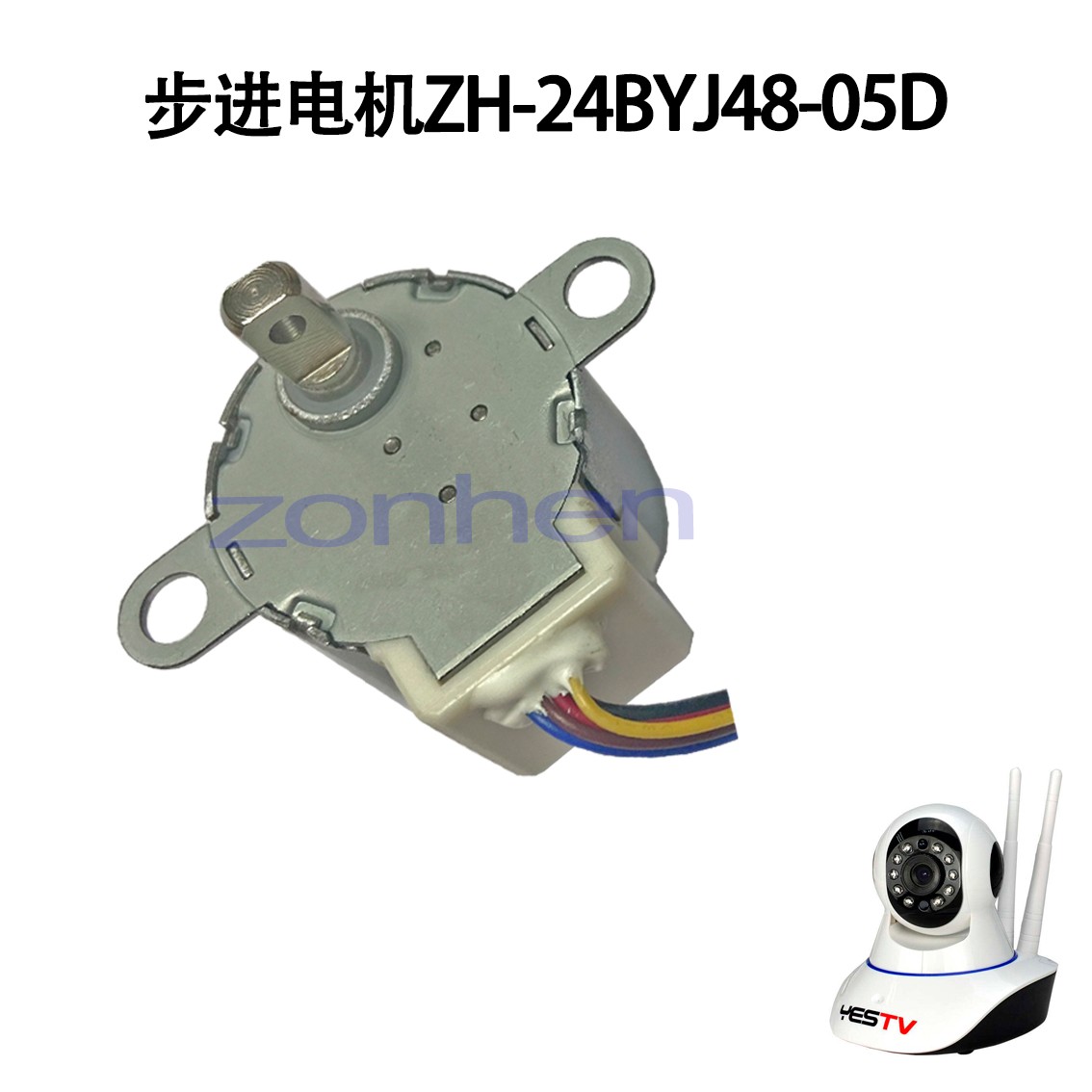

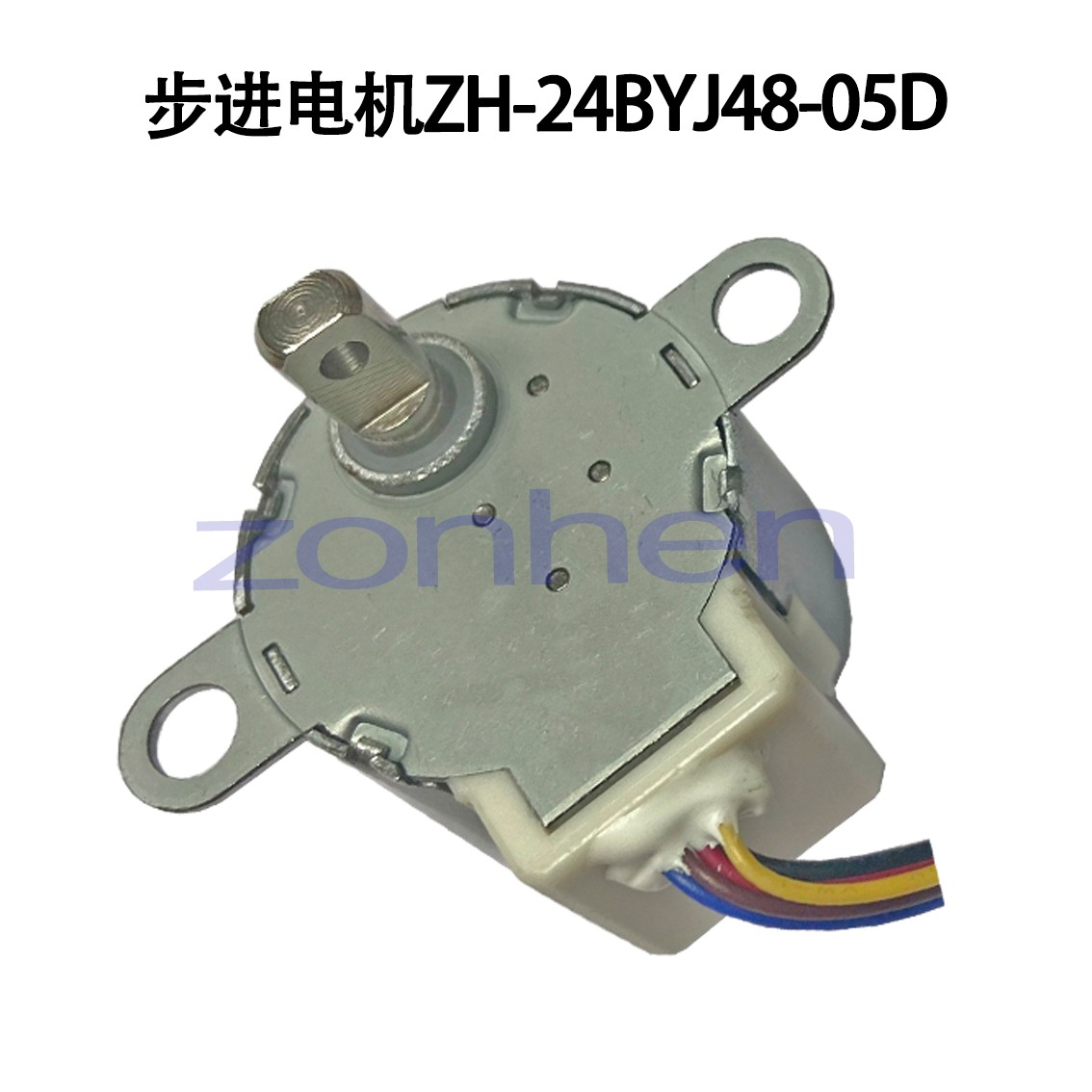

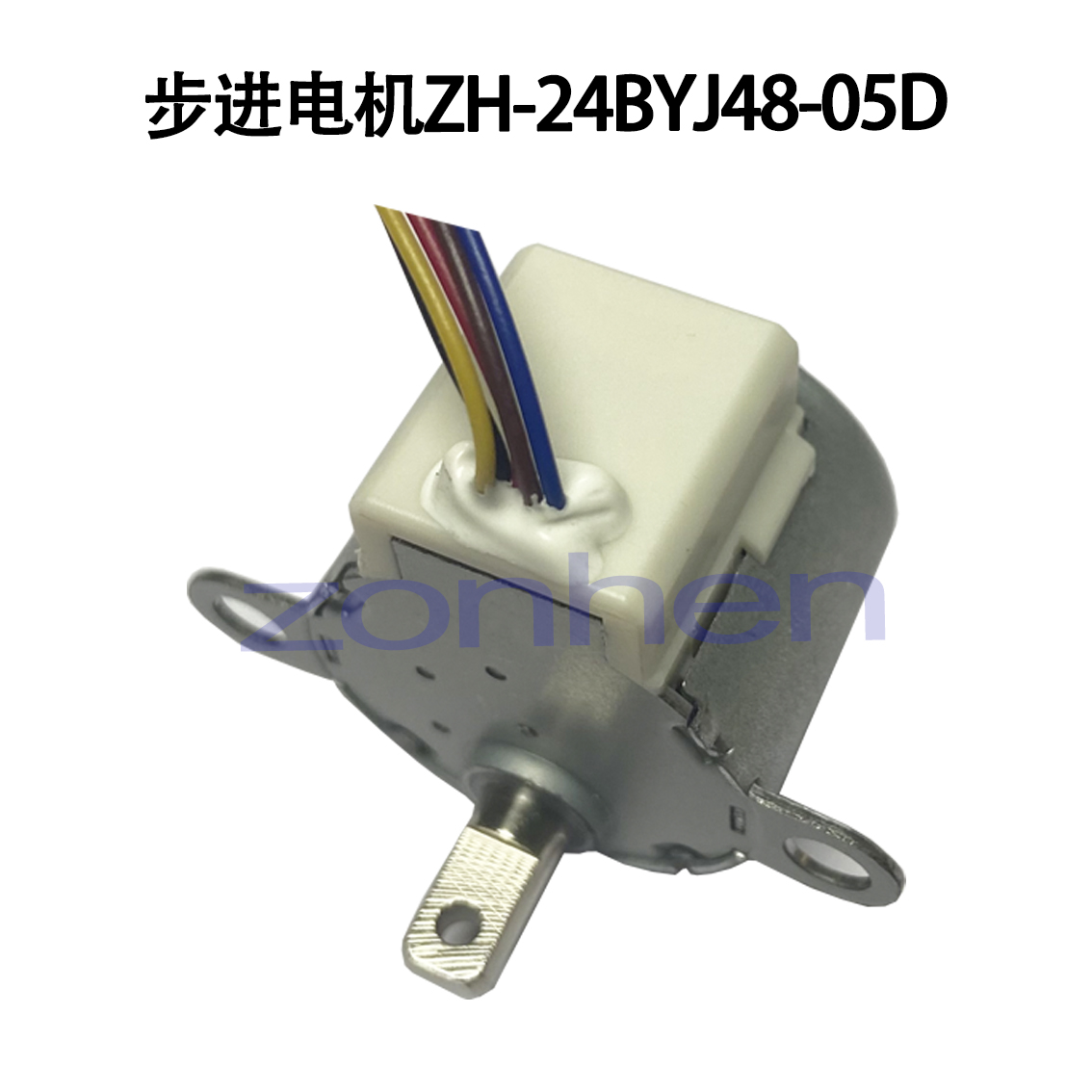

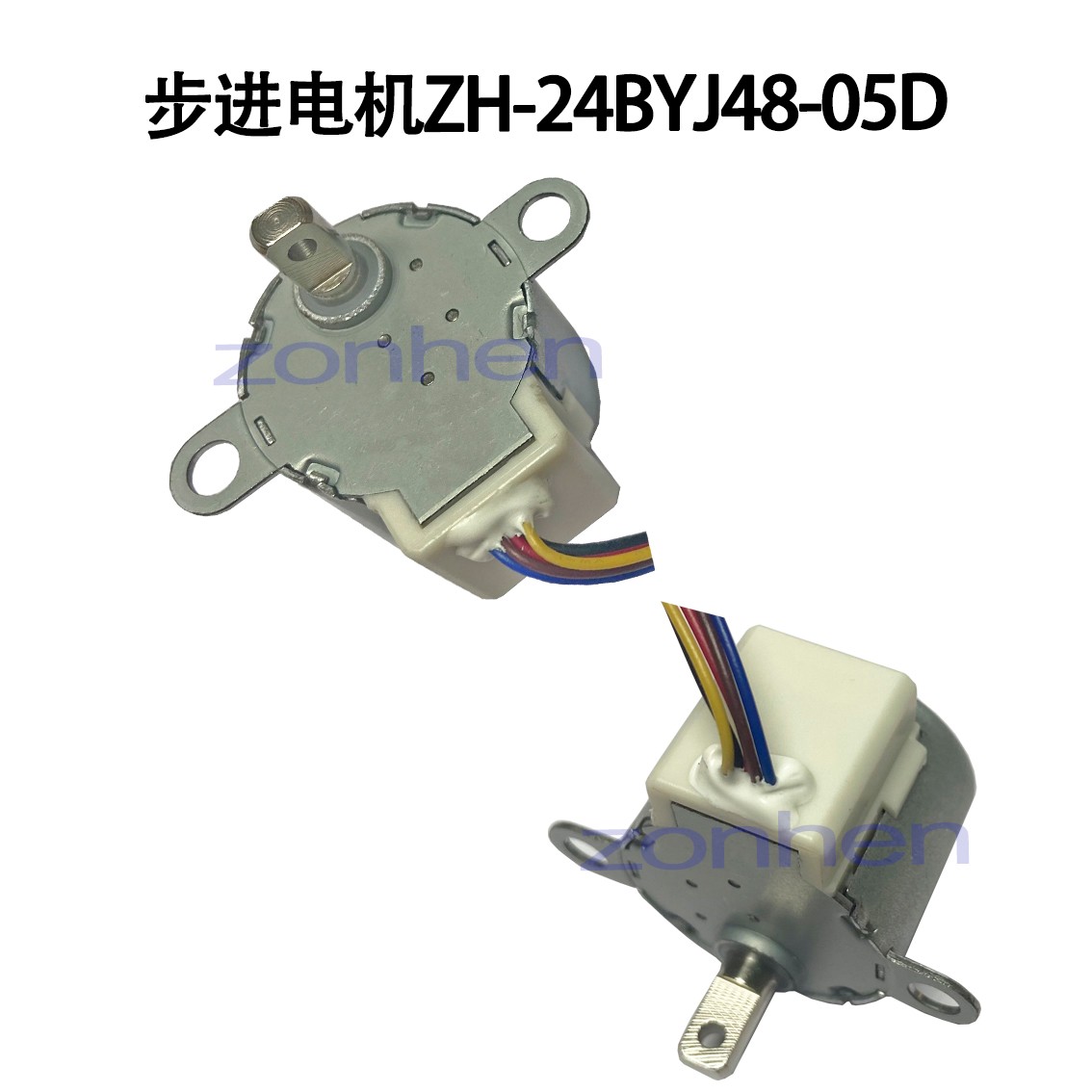

ZH-24BYJ48-05D20  Stepper Motor for Camera Zoom Lens


Voltage:DC 5V

Resistance (phase) : 20?

Step Angle: 5.625?

Drive Mode :  Bi-Polar

Excitation Mode: 1-2

Reduction Ratio: 1/64

Max Self-start Frequency: 500pps

Max. slew speed: 900pps

Holding Torque:900g.cm

Weight:  28g
