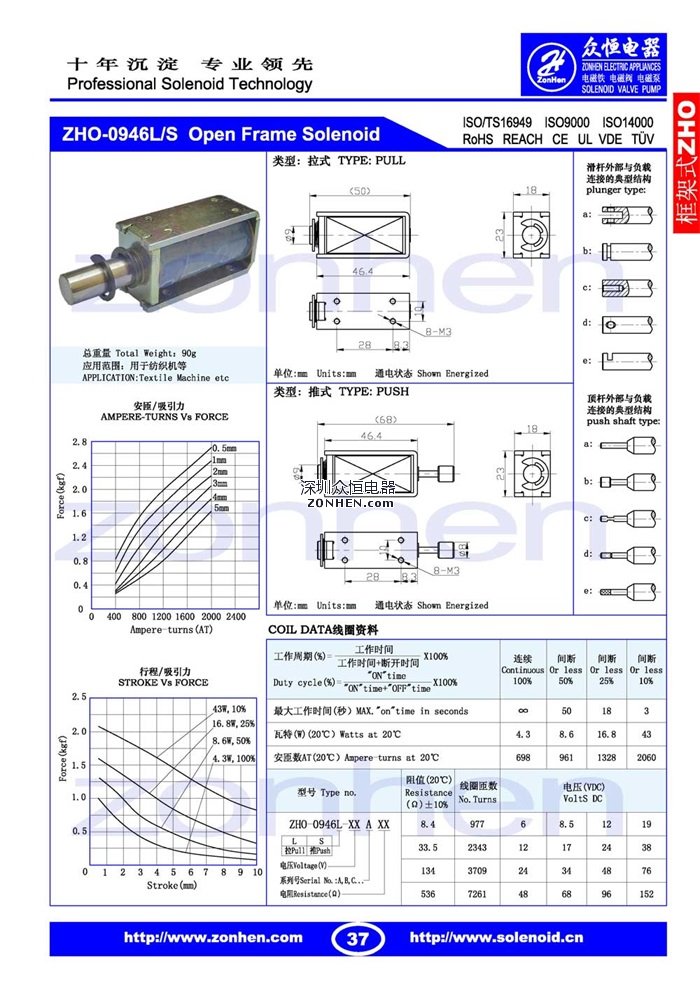

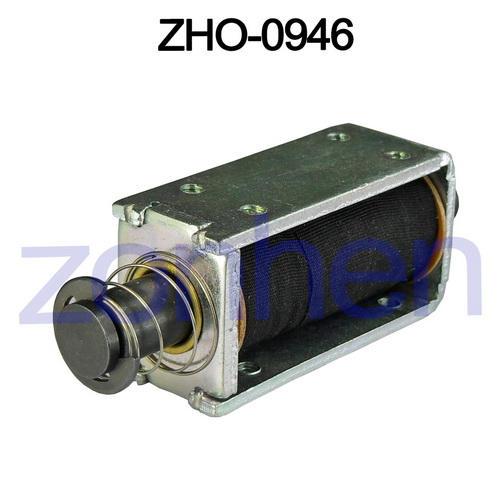

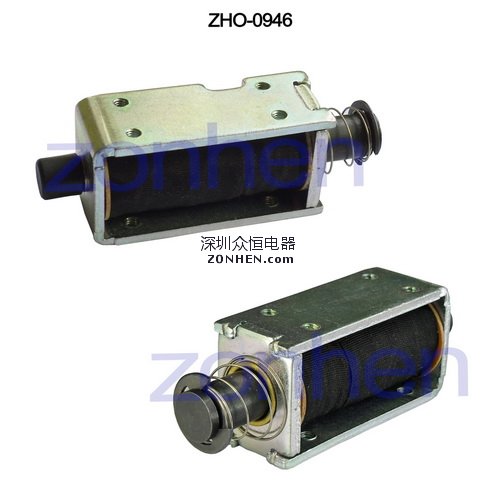

ZHO-0946  Open frame solenoids used for textile

Exteranl dimension：46*23*18（mm）

Voltage：3-48VDC 24-220VAC

Stroke：0-12mm, Force： From 20-1400g according to differnet stroke and power.

Working mode: Push and Pull

Insulation class：Class B，F(xiàn).....

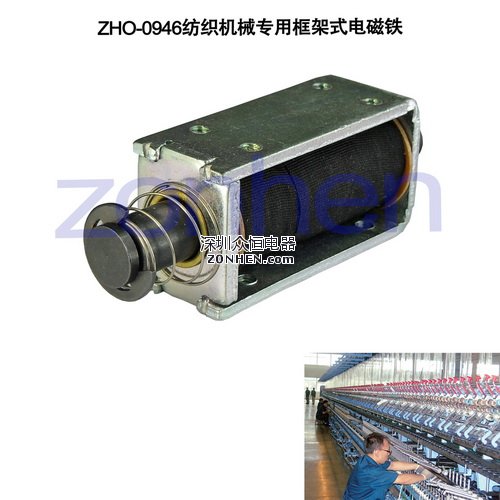

Application: Textile etc.
