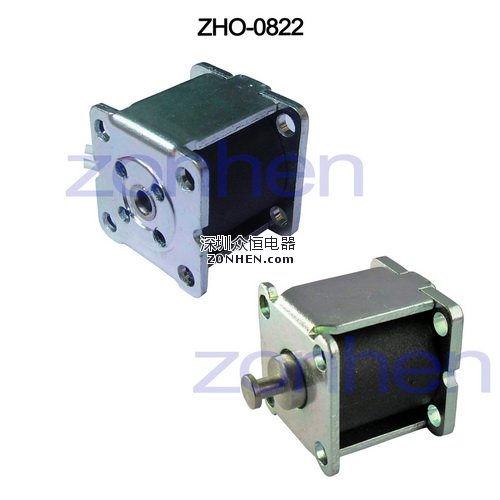

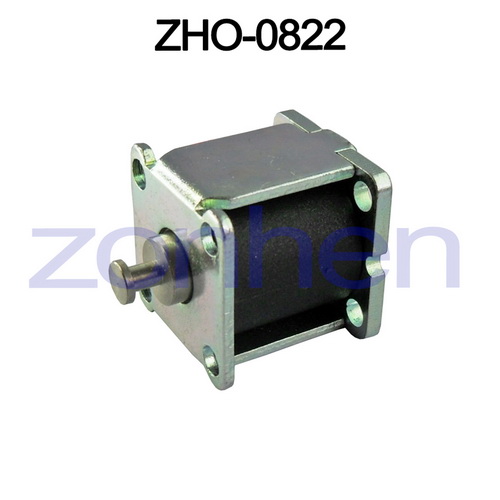

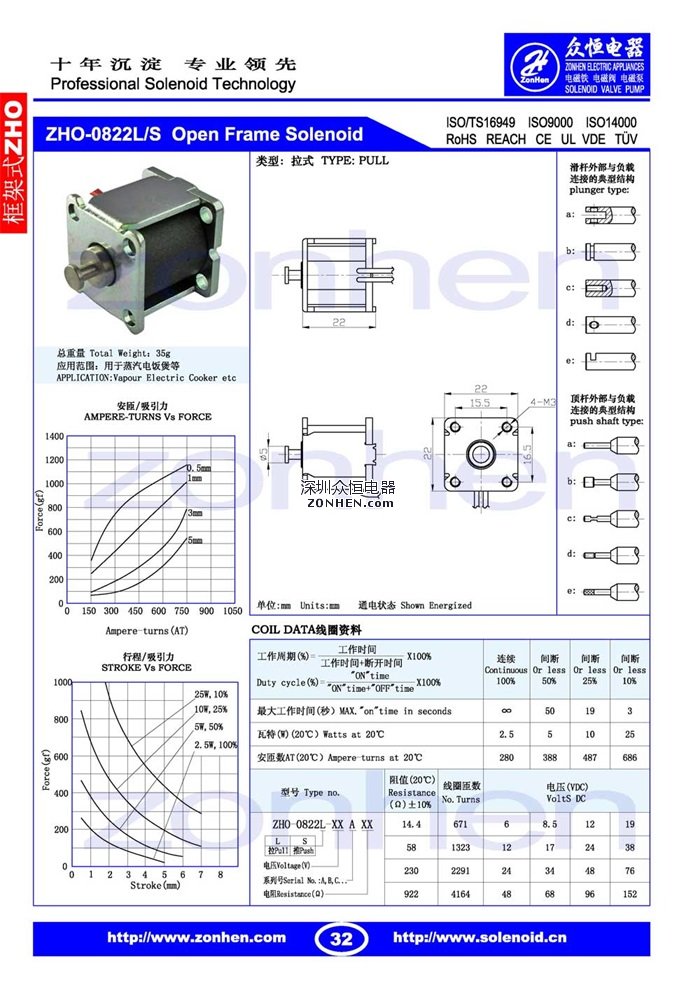

ZHO-0822 D type open frame linear push pull solenoid used for electric cooker

Exteranl dimension：：22*22*22 （mm）

Voltage：3-48VDC 24-220VAC

Stroke： 0-5mm, Force： From 20-700g according to differnet stroke and power.

Working mode: Push and Pull

Insulation class： Class B，F(xiàn)....

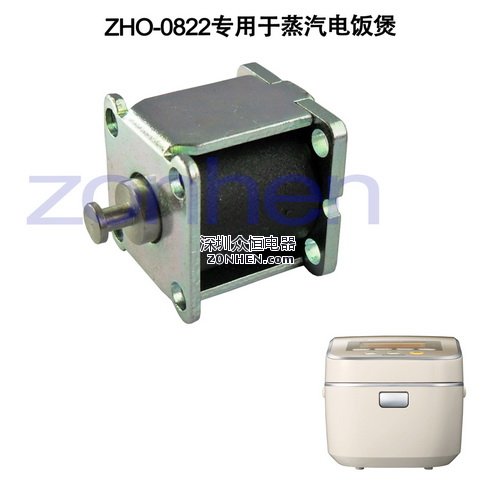

Application: Electric cooker etc.
