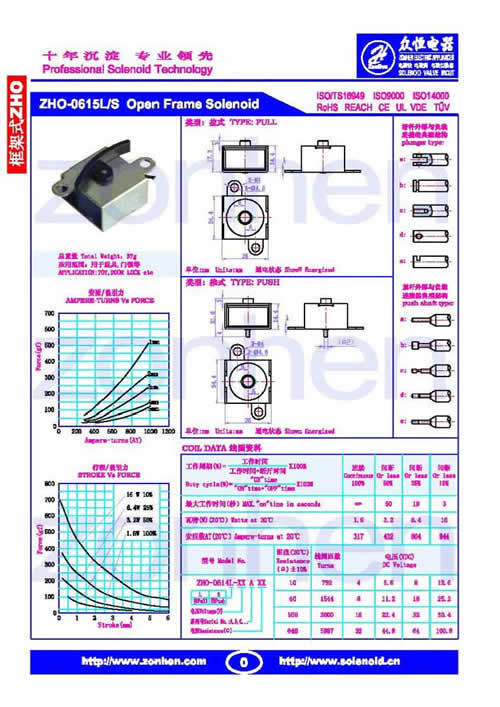

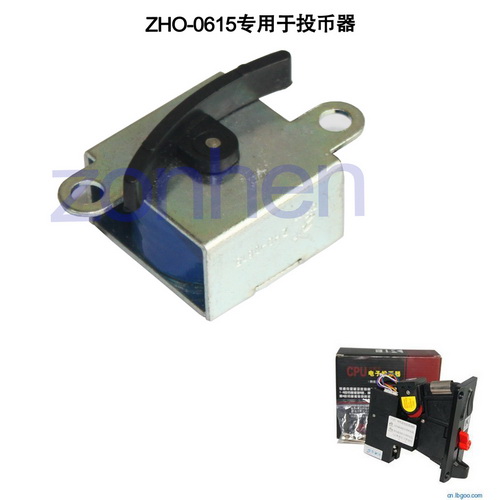

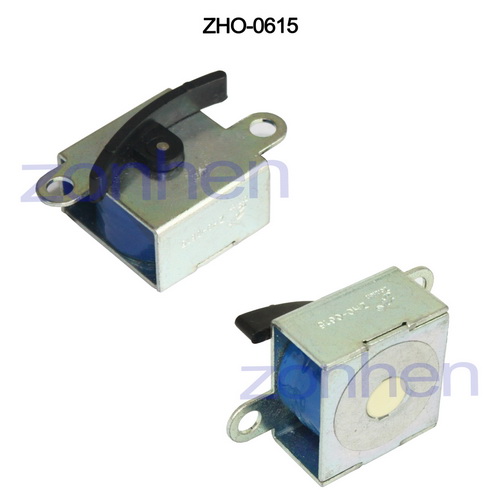

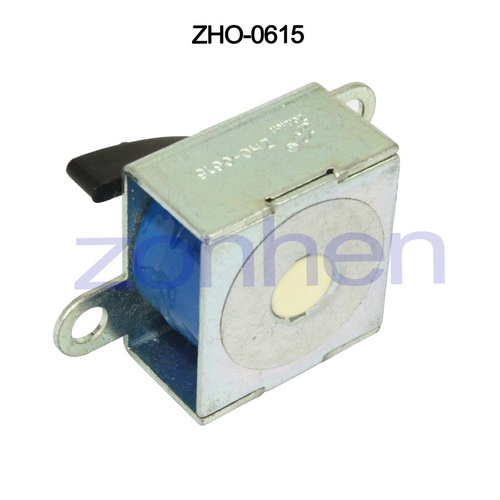

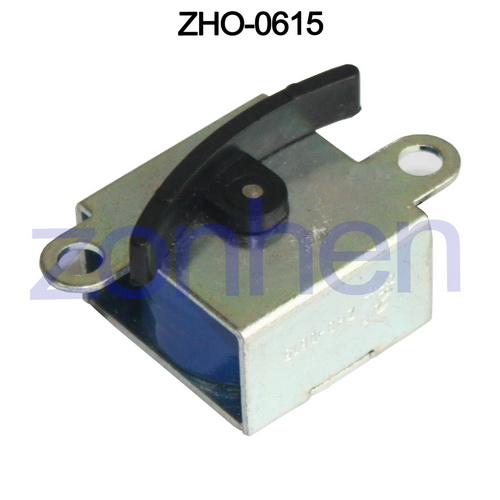

ZHO-0615 D type open frame solenoids used for insert coin machine

Exteranl dimension：14.5*24.4*25 （mm）

Voltage：3-48VDC 24-220VAC

Stroke： 0-6mm, Force： From 5-700g according to differnet stroke and power.

Working mode：Pull

Insulation class： Class B，F(xiàn).....

Application: Insert coin machine, pay phone etc.
